Standard features :-
Eyepieces
Widefield WF10x (18mm) and plan P- 16x eyepieces are standard. Also available
as
options are widefield WF15x,12.5x eyepieces, huygenian H15x, 12.5x eyepieces
and
huygenian H5x eyepieces, providing choices of various magnifications.
Objectives
The standard is achromatic objectives (4x,10x,40xR and 100xR oil), 4x(0.1N.A.),
10x(0.25N.A.), 40x(0.65N.A.SPRING), 100X oil(1.25N.A.SPRING)
BINOCULAR HEAD
The E-300HQ model with the ocular tube at 30° inclined and 360° rotatable.
Stage
Large smooth operating mechanical stage with vernier scales in the X-Y direction
and
a travel range of 30 x 60mm. Graduations up to 0.1mm.
Focusing
Coaxial fine and coarse adjustment is a standard feature on all models, ensuring
precise
focusing throughout the entire magnification range.
Condenser
With 1.25 N.A. abbe condenser operated on rack and pinion mechanism that consistently
provides a bright and even illumination.
Illuminator
The E-300HQ models feature a 6V/20W halogen light system.
STANDARD SPECIFICATION
|
COMPONENTS
|
SPECIFICATION
|

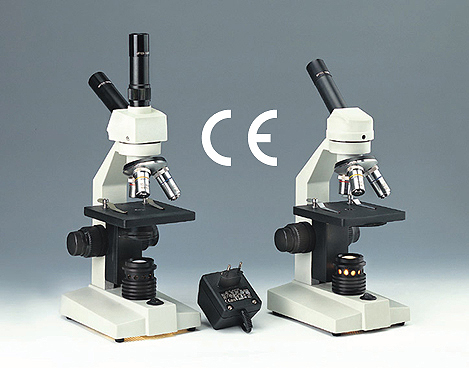

E-100
|
E-100T
|
E-200T
|
E-200HQ
|
E-300HQ
|
|
Head
|
Monocular 45° inclined 360° rotatable
|
•
|
•
|
|||
|
Monocular 45° inclined 360° rotatable
with teaching dual head
|
•
|
•
|
||||
|
Bincular 30° inclined 360° rotatle
with binocular head
|
•
|
|||||
|
Eyepiece
|
WF 10x18mm with built-in pointer
|
•
|
•
|
|||
|
Teaching dual head tube with WF 10xand
diopter adjustment
|
•
|
•
|
||||
|
Binocular head with WF-10x eyepiece X
2
|
•
|
|||||
|
Objective
|
DIN Achromatic 4x N.A. 0.10
|
•
|
•
|
•
|
•
|
•
|
|
DIN Achromatic 10x N.A. 0.25
|
•
|
•
|
•
|
•
|
•
|
|
|
DIN Achromatic 40x (spring) N.A. 0.65
|
•
|
•
|
•
|
•
|
•
|
|
|
DIN Achromatic 100x oil immersion objective
(spring)*
|
o
|
o
|
o
|
•
|
•
|
|
|
Nosepiece
|
Triple revolving nosepiece
|
•
|
•
|
•
|
o
|
o
|
|
Quadruple nosepiece (ball bearing)
|
o
|
o
|
o
|
•
|
•
|
|
|
Condenser
|
0.65 N.A. condenser with five operture
disc diaphragm
|
•
|
•
|
•
|
o
|
o
|
|
0.65 N.A. condenser with iris diaphragm
& blue filter
|
o
|
o
|
o
|
o
|
o
|
|
|
1.25 N.A. abbe condenser with iris diaphragm
& blue filter
|
o
|
o
|
o
|
•
|
•
|
|
|
Stage
|
115mm X 125mm mechanical stage
|
o
|
o
|
o
|
•
|
•
|
|
110mm X 125mm stage with clips
|
•
|
•
|
•
|
|||
|
Movable Specimen Holder
|
o
|
o
|
o
|
|||
|
Illumination
|
42mm plano and concave miror
|
•
|
o
|
o
|
o
|
o
|
|
Built-in 20W tungsten bulb 230V(CE) or
110V(UL)
|
o
|
•
|
•
|
o
|
o
|
|
|
Built-in 12V/15W halogen light with 230V(CE)
or 110V(UL) transforma
|
o
|
o
|
o
|
•
|
•
|
| • | Standard Accessories | o | Optionalaccessories |
Design Change: The manufacturer reserves the right to make changes in instrument design in accordance with scientific and mechanical progress, without notice and without obligation.
 |
 |
