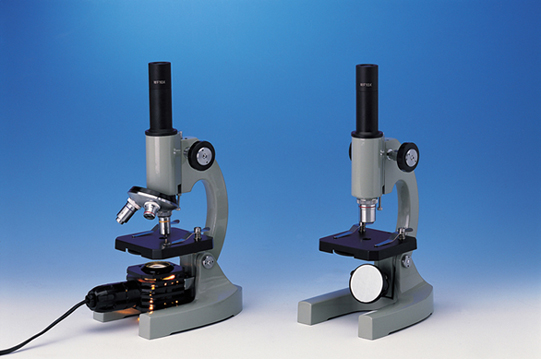

PRECISION P-3 SERIES STUDENT MICROSCOPE



Standard features
- Vertical compact design with 280 mm monocular model on durable cast base
- Heavy duty inclination arm assembly, inclines through 45°
- Triple revolving nosepiece with positive click stops
- Built-in clutch in the focusing knob on both side ensures the risk in damaging the pinion,
rack, objective and specimen
- Safety rack stop prevents damage to slides and objectives
- Optics are low reflection coated
- 10 power eyepiece, locked-on
- Objectives, 4x, 10x, 40x spring retractable
- Square stage 88mm x 82mm, acide and reagent resistant with two object clamps locked-on
- Front-view rotary disc diaphragm with positive click stop and 6 different apertures
- Grey, stain resistant: baked on finish
- Packed in protected styrofoam case with carton box outside.

Packing size: H37 x W53 x L84cm (10 pcs pack)
Gross weight: 20kgs, (10 pcs. pack)



Standard set in P-3 series comes in with:-
Model P-3A
1. Stand
2. 10x eyepiece
3. Objective: 4x, 10x, 40x (spring)
4. Rotary diaphragm
5. Mirror and fork
6. Dust cover
Model P-3S
1. Stand
2. 10x eyepiece
3. Objective: 10x
4. Rotary diaphragm
5. Mirror and fork
6. Dust cover
Optional extras
Illuminator with condenser 220V 50Hz 20W or 110V 60Hz 20W
