STANDARD SPECIFICATION

COMPONENTS
SPECIFICATION
M-2F
(A)
M-2FL
(AL)
M-100FL
(A)
M-100FL
(AL)
M-200FL
(AL)
Heads Monocular 45° inclined
•
•
Monocular 45° inclined 360° rotatable
•
•
•
Monocular 45° inclined 360° rotatable with teaching dual head
•
Eyepiece WF 10x18mm with built-in pointer
•
•
•
•
•
Teaching dual head tube with WF 10x and diopter adjustment
•
Objectives DNA Achromatic 4x N.A. 0.10
•
•
•
•
•
DNA Achromatic 10x N.A. 0.25
•
•
•
•
•
DNA Achromatic 40x(spring) N.A. 0.65
•
•
•
•
•
Nosepiece Triple revolving nosepiece
•
•
•
•
•
Condenser 0.65 N.A. with five operture disc diophrogm
•
•
•
•
•
Focusing Coarse forus with built-in slip clutchand tension adjustment
•
•
•
•
•
Separate coarse and fine focus with built-in slip clutch and tension adjustment
•
•
Illumination 42mm plano and concove mirror
•
•
Built-in 20W tungsten light bulb with condenser and blue filter (110V UL approved or 220V VDE approved.)
•
•
•

OPTIONAL ACCESSORIES
M-2F
(A)
M-2FL
(AL)
M-100F
(A)
M-100FL
(AL)
M-200FL
(AL)
Movable specimen holder (for all models)
o
o
o
o
o
Extra DIN Achromatic 100x oil immersion objective (spring)*
o
o
o
o
o
0.65 N.A. Condenser with iris diophrogm and filter
o
o
o
o
o
Focusable spiral type Abbe Condenser 1.25 N.A. with filter and iris diophrogm
o
o
o
o
o
Eyepiece (Widefield WF 15x)
o
o
o
o
o
Eyepiece (Huygenian H5x)
o
o
o
o
o
Eyepiece (Huygenian H10x)
o
o
o
o
o
Quadruple nosepiece (ball bearing) instead of triple nosepiece
o
o
o



* To be ordered with 1.25 N.A. Abbe condenser for maximum result. Illumination of built-in 20W is
recommended instead of daylight mirror.
Design Change: The manufacturer reserves the right to make changes in instrument design in
accordance with scientific and mechanical progress, without notice and without obligation.

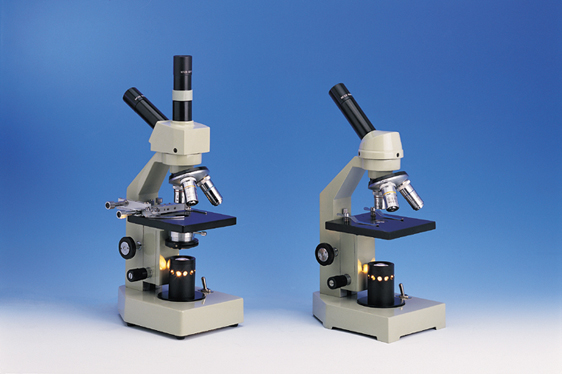

M-200AL
M-100AL
